Porcelain vs Ceramic Insulators: Which Is Best for Your Electric Fence?
Ceramic vs Porcelain: They Are Not the Same
At first glance ceramic and porcelain insulators look like the same baked clay, but they are not. The two materials differ in production cost, firing temperature and long-term durability in the field — and those differences decide which one belongs on your fence.
At a Glance
Feature
Ceramic
Porcelain
Raw material
Red, brown or white porous clay
Refined white clay (kaolin) + feldspar + quartz
Firing temperature
2,100–2,300°F
2,200–2,600°F
Cost
Lower
Higher
Durability
Can chip or become brittle in extreme cold
Denser, less absorbent — withstands harsh weather
Insulation quality
Excellent
Excellent
Best for
Standard wood-post installs on a budget
High-stress fences, corners, extreme cold, aggressive animals
Ceramic Insulators
Ceramic is made of porous clay, shaped and fired at 2,100–2,300°F. It is less expensive to produce than porcelain, which makes it the sensible default for most standard wood-post installations. Glazed ceramic insulators bake the glaze only into the top layer. They are tough and will give many years of service, but they can break more easily and may become brittle in extreme cold weather.

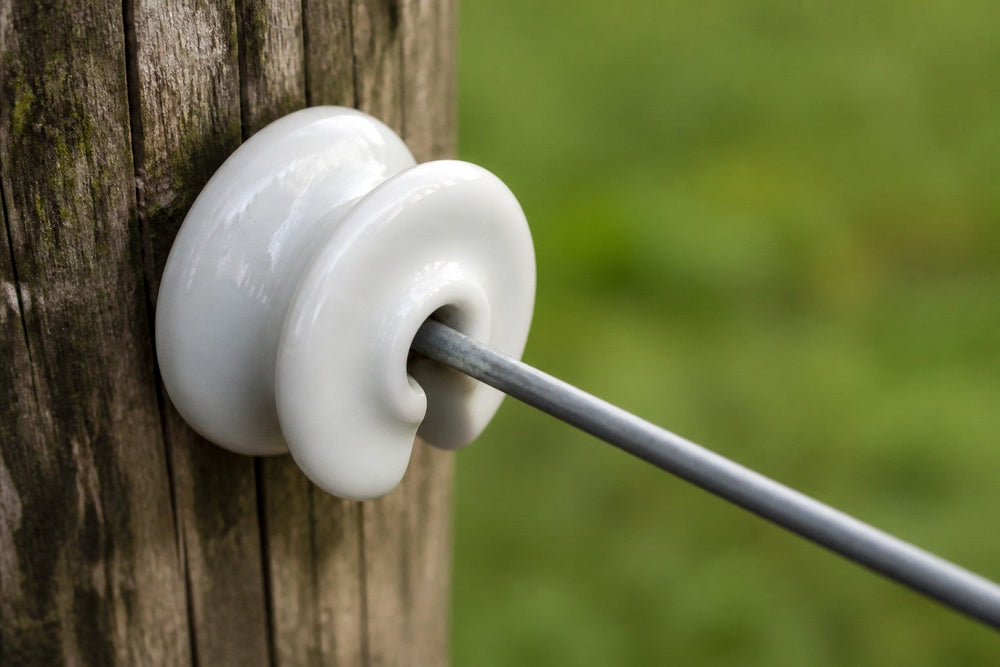

Porcelain Insulators
Porcelain is made from refined white clay called kaolin and fired at temperatures up to 2,600°F. The process is an ancient one — the same firing of kaolin, feldspar and quartz that produces fine china, which is why porcelain is sometimes called "China". Porcelain is denser and less absorbent than ceramic, so it shrugs off moisture and harsh weather. It is more expensive to produce, and it lasts.
Because of that durability, porcelain insulators are the right choice for fences that see a lot of stress and strain: corners, extreme cold, or pressure from aggressive animals. High-quality porcelain insulators are typically backed by a lifetime guarantee against normal wear and tear, while ceramic carries a standard return policy.
Why the Insulator Material Matters
An insulator's job is to hold electrified wire near the post without leaking energy through the post. Both ceramic and porcelain do this better than plastic, and neither breaks down under UV sun damage the way polyethylene insulators eventually do. That matters for permanent or semi-permanent fences: with a fence designed to last 20–30 years, installing an insulator with a shorter UV life means replacing components long before the wire wears out.
Plastic (HDPE) insulators — cheap and easy, but UV radiation shortens their field life; fine for temporary fencing.
Ceramic insulators — the budget-friendly upgrade for permanent wood-post lines in moderate climates.
Porcelain insulators — the lifetime component for corners, high-stress lines and cold climates.
Installing Wire on Grooved Insulators
For insulators with grooves rather than built-in clips, use spacer clips: hook the clip over one side of the fence line, wrap it around the insulator on the opposite side, and secure it back on the line. The clip holds the line firmly against the insulator while still allowing it to shift with temperature-driven contraction and expansion, plus the occasional stress of animal pressure. Several screw-in and lag-screw insulator designs let you thread the wire straight through a loop once the insulator is in the post.
Which Wire Works with Ceramic and Porcelain?
Both materials handle any size fence wire — high-tensile steel, polywire and polyrope — and both are available for in-line and corner posts. If you are building on wood posts and want a set-and-forget system, match the insulator to the climate: ceramic for mild conditions, porcelain where winter or animal pressure will test the fence. For the rest of the system, see our components and installation guides.
Read article
electric fence
Electric Fence ROI: The Real Cost of Fencing (And Why Cheap Isn't Cheaper)
Why the Upfront Price Is the Wrong Number
Ask most producers what a fence costs and they quote a per-foot material price. That number answers a purchasing question, not a business question. A fence is a multi-year asset that consumes your time every week it stands, so its real cost is: materials + installation + annual maintenance + the labor it demands + the losses it fails to prevent, spread across its service life.
Electric fencing changes almost every term in that equation at once. It uses fewer posts and less wire because it works psychologically rather than physically. It can be moved instead of rebuilt. And because animals learn to respect it after one contact, it takes far less punishment than a barrier fence absorbing constant pressure.
Installed Cost: Electric vs Traditional Fence
The most neutral pricing reference available is the USDA NRCS EQIP cost list, which sets standardized per-foot values used for conservation cost-share payments. It prices each fence type by the same method, which makes the gaps meaningful:
High-tensile electric fence with energizer: about $0.84 per foot
Multi-strand barbed wire: about $1.40 per foot
Woven wire: about $3.29 per foot
High-tensile electric comes in at roughly 60% of barbed wire and about a quarter of woven wire. The reason is structural: high-tensile wire spans 200–300 feet between posts, while conventional wire needs posts every 10–12 feet — so the post count, the expensive part, collapses.
Factor
Electric (hi-tensile / netting)
Barbed or woven wire

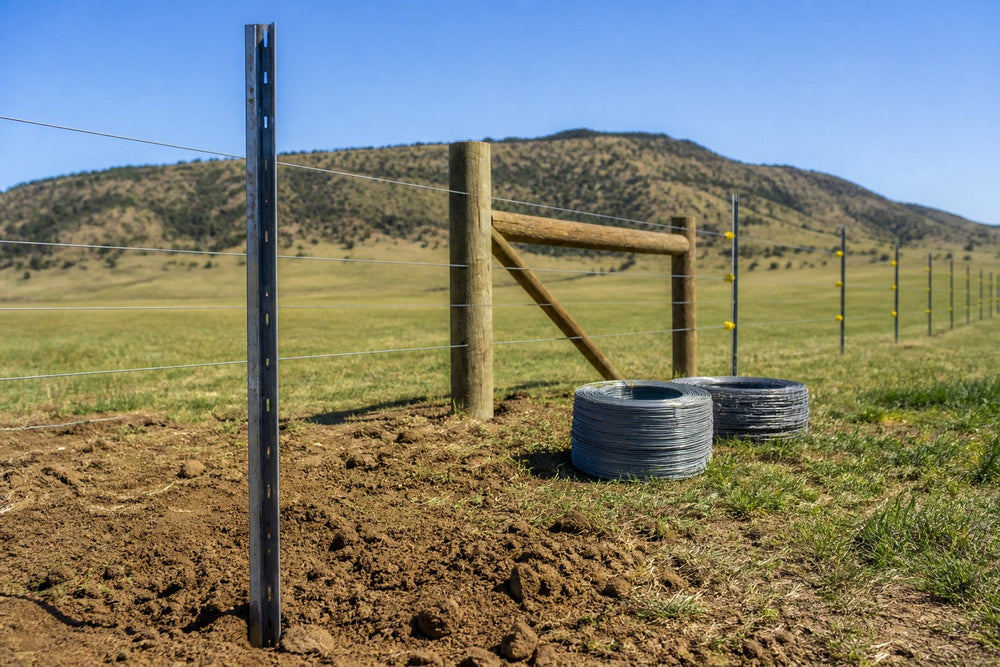

Posts required
Few — 200–300 ft spans
Many — 10–12 ft spacing
How it contains
Psychological; animals learn once
Physical; absorbs constant pressure
Repositioning
Minutes, with the same materials
Rebuild required
Animal injury risk
Low — brief shock, no barbs
Cuts, hide damage, entanglement
Ongoing input
Voltage checks, vegetation clearing
Restapling, retensioning, rust repair
Labor: The Biggest Hidden Line Item
Labor is the one farm cost that never stops compounding, and permanent fence locks your labor pattern in place for twenty years. Electric fence unlocks it. The savings come from four places:
Subdividing without building. A reel of polywire and step-in posts creates a paddock in minutes and recovers it just as fast.
Shorter checking time. Smaller rotational pastures cut weekly labor compared with checking one very large continuous pasture — even after adding the time to move cattle.
Less repair labor. Stock that respect a hot wire stop leaning, rubbing and pushing — the behavior that destroys barbed and woven fence.
Fewer escapes. Every breakout is unbudgeted labor: chasing stock, mending fence, apologizing to a neighbor.
Losses You Simply Don't Take
Avoided loss is real return, and it is the term most producers leave out of the spreadsheet entirely. USDA NASS data from Wyoming makes the scale visible: in 2024, sheep producers there lost 36,000 head to all causes, and 22,400 of those were taken by predators — 62.2% of all deaths, worth an estimated $5.1 million. Coyotes alone accounted for 40.8% of total death loss.
Poultry keepers face the same arithmetic on a smaller scale. Wildlife agencies that field daily calls about predator conflict state plainly that properly maintained electric fencing is the only reliable way to protect poultry from bears. Against a flock of 25 laying hens, a single successful raccoon or fox visit can erase more value than the fence cost. See our guides on predator-proof fencing for the setup details.
Running Cost Is a Rounding Error
People assume electricity is the recurring cost. It isn't. Fence energizers pulse for a fraction of a second and draw only a few watts continuously — most agricultural units land between about 3 and 25 watts depending on size and vegetation load. A 10-watt mains charger operating 24/7 for a year at 10¢/kWh costs about $8.64. Solar units remove even that. Your actual recurring costs are a replacement battery every few years, occasional insulators, and the time spent keeping grass off the wire.
A Quarter-Mile, Ten-Year Model
Here is the comparison run out over a realistic ownership window: 1,320 feet of perimeter, the USDA per-foot values above, an energizer at $116, roughly $9/year in electricity, and modest annual upkeep for each system.
Electric system, 10-year total: ~$1,715
Barbed wire, 10-year total: ~$2,398
Woven wire, 10-year total: ~$4,843
That gap exists before counting a single labor hour or a single animal saved. Add either of those and the decision changes category entirely.
One more line worth knowing: EQIP cost-shares fencing under Practice 382 at up to 75% of the standardized cost, and up to 90% for beginning, veteran or historically underserved producers. Cross-fencing for rotational grazing ranks well in that program; boundary fence replacement generally does not.
Your Break-Even in Four Steps

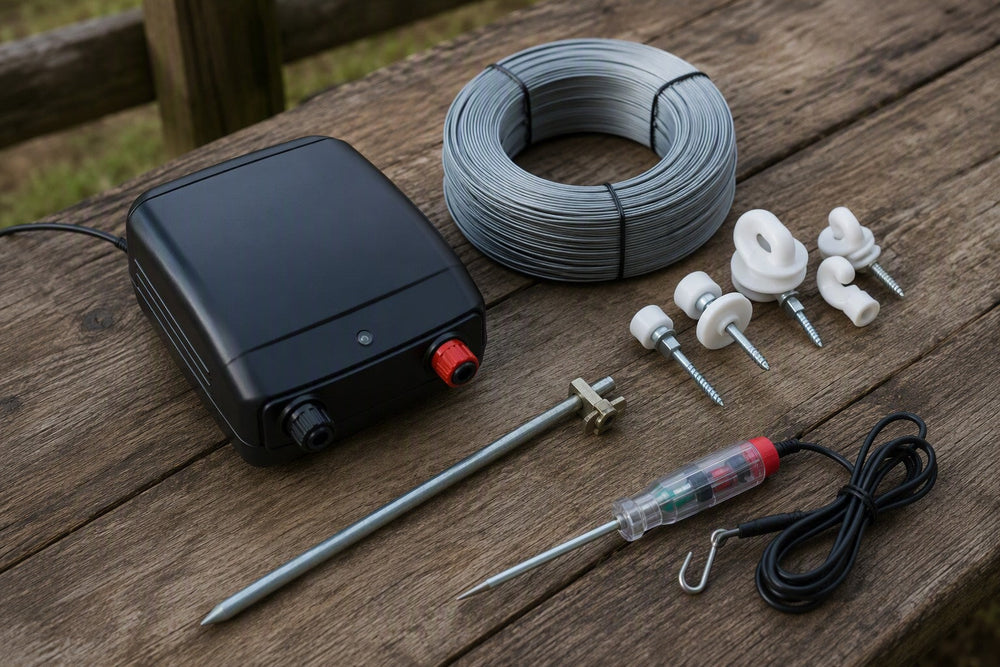

Price the total system, not the wire. Energizer, grounding kit, wire or netting, posts, tester, gate handles. Divide by expected service life in years.
Value the hours you'll stop spending. Estimate weekly hours currently going to fence repair, stock checking and escapes. Multiply by your local labor rate and 52.
Put a number on the losses you expect to prevent. Even one avoided calf, one avoided flock raid, or one avoided vet bill for a barbed-wire injury belongs in this line.
Check what's cost-shared. If you're building cross-fence for a grazing plan, ask your local NRCS office about Practice 382 before you buy anything — fence built before the contract is signed isn't reimbursed.
If steps 2 and 3 together exceed the annualized figure from step 1 — which they usually do on any operation with real predator pressure or real rotation ambitions — the fence has already paid for itself on paper. Everything after that is margin.
Frequently Asked Questions
How long does electric fence wire and netting actually last?
High-tensile galvanized wire commonly lasts 20 years or more, while the plastic components — insulators, polywire and polytape — are the wear items and typically need replacing every four to five years. Poultry and livestock netting sits in between; owners regularly report four or more years of hard use when it's stored dry and off the ground. UV exposure and rodent damage during storage shorten netting life far more than daily use does.
Can I electrify my existing barbed or woven wire fence instead of replacing it?
Yes, and it's often the highest-return option available. Keep the existing posts and add offset insulators carrying one or two hot wires on the animal side. This stops livestock leaning and rubbing, which is what destroys conventional fence, and can substantially extend the life of a fence you've already paid for.
Solar or mains energizer — which is the better investment?
Mains units cost less per joule and never depend on weather, so they win wherever an outlet is within reach. Solar earns its premium at remote paddocks, temporary setups and anywhere trenching power would cost more than the energizer — the electricity was never the expense.
What voltage should I be reading on the fence?
Most livestock applications target around 4,000–6,000 volts on the line, with poultry and predator-exclusion setups usually run higher because fur and feathers insulate well. Measure at the far end of the fence, not at the energizer, and check on a schedule — a fence you don't measure is a fence you're guessing about.
The Bottom Line
Electric fencing typically returns its cost within one to three seasons, because the savings come from labor hours, avoided livestock losses and near-zero running cost — not from the wire itself. If you are planning a new cross-fence or a predator perimeter, browse the LIFEALL energizer range to start your total-system pricing, and size the energizer to your fence length and vegetation load rather than to the smallest budget number.
Read article
brand comparison

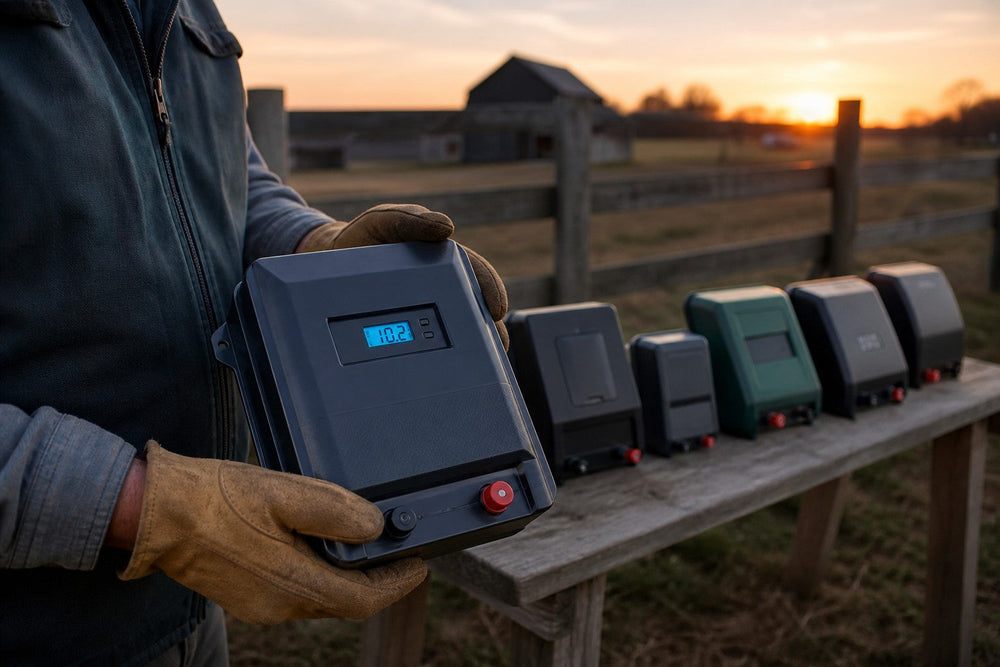

Electric Fence Energizer Brands Compared: Gallagher, Parmak, Speedrite, Patriot, Zareba & LIFEALL
Short Answer
There is no single "best" energizer brand — the majors simply serve different jobs. Gallagher and Speedrite build wide premium ranges for large commercial systems; Parmak and Zareba are long-standing US manufacturers aimed at farm-retail buyers; Patriot covers the low-cost entry tier; and LIFEALL focuses on value, adjustable output and solar independence for small-to-mid farms. Pick by output joules, power source, weather rating and service access — not by brand reputation alone.
What This Comparison Covers
We compare seven brands sold in North America: Gallagher, Parmak, Patriot, Speedrite, Zareba, VetraPulse and LIFEALL. Brands are presented alphabetically and deliberately not ranked, because a 0.2-joule portable and a 12-joule mains unit are not competing for the same customer.
Honest framing: LIFEALL makes and sells energizers, so we have a commercial interest in one of the seven brands. To keep this useful, every specification below comes from the brand's own published material, each section includes limitations as well as strengths — including ours — and nothing here is a paid placement.
The Four Specs That Decide Everything
1. Output joules — the real power number
A joule is the energy released down the fence line with each pulse. Quality manufacturers publish two figures: stored joules (what the capacitor holds) and output joules (what reaches the wire). Output is the only number that compares cleanly across brands. Fencing specialists commonly plan around roughly one output joule per mile of energized wire under light load, then add capacity for vegetation, poly conductors and expansion.
2. Voltage on the line
Joules move the energy; voltage is the pressure that pushes it through hair, wool and wet weeds. Most livestock fences target several thousand volts at the far end. Fixed-voltage units hold one setting; adjustable units let you dial output up for cattle and wildlife or down for poultry.
3. Power source
Mains (AC) gives the most joules per dollar wherever a socket exists. 12V DC battery units suit remote paddocks. Solar units run themselves off-grid but are limited by panel and battery size. Multi-power chassis accept both AC and DC, which matters if your paddock layout will change.
4. Enclosure and protection rating
Energizers live outdoors year-round. An IP rating (e.g. IP65, dust-tight and protected against water jets) tells you more than "weather resistant". Lightning is the leading cause of energizer death in most regions — check whether the warranty covers lightning damage.
Rule of thumb: buy roughly double the joules you calculate. Fences grow, weeds arrive, and an energizer running at half capacity lasts longer than one running flat out.
Seven Brands Side by Side
Brand
Origin
Power options
Typical buyer
Gallagher
New Zealand, family-owned since 1938
Mains, battery, solar, lithium solar
Mid-to-large operations wanting monitoring and a deep accessory ecosystem
Parmak
USA (Parker McCrory), since 1921
Mains, 12V battery, solar
Buyers who want US manufacturing, factory service and lightning-inclusive warranty
Patriot
New Zealand (Datamars)
Mains, battery, solar, dual-purpose
Entry-tier and portable strip-grazing setups
Speedrite
New Zealand (Datamars)
Mains, battery, dual-powered, solar
Commercial graziers scaling past 5–6 joules
VetraPulse
USA (Seattle, WA)
Solar, 110V AC, 12V DC, multi-power
Small-to-mid farms wanting adjustable output
Zareba
USA (Woodstream)
Mains, battery, solar
Homestead and farm-retail buyers who want to buy locally today
LIFEALL
China, direct-to-farm e-commerce
Mains, 12V DC, solar (incl. 20-mile solar, 9J high-output)
Value-focused small-to-mid farms; off-grid solar users; buyers who want adjustable/high-output power without the premium badge
Brand-by-Brand Notes
Gallagher
Strengths: the deepest ecosystem in the category — energizers, monitors, reels and insulators designed to work together, wide dealer coverage, remote monitoring on the i-Series, 3-year North American energizer warranty. Where it stops: premium pricing, and smart-fence features you may never use on a single paddock.
Parmak (Parker McCrory)
Strengths: made in the USA (matters for grant-funded projects), warranty that explicitly names lightning damage, steel housings warranted for life against rust, direct factory service in Kansas City. Where it stops: deliberately traditional feature sets — no app, no selectable multi-level output; solar models sized for small and medium fences.
Patriot
Strengths: the cheapest way into a name-brand New Zealand energizer; simple, few failure points; small battery units suit strip grazing. Where it stops: low output ceilings — a Patriot portable will not carry a long multi-strand perimeter or heavy weed load, and there is no adjustable voltage or monitoring.
Speedrite
Strengths: a clean joule ladder (model numbers map to output), dual power as standard, remote fault-finding on the i-series. Where it stops: premium pricing, and the feature-heavy models are more energizer than a backyard flock needs.
VetraPulse
Strengths: adjustable output (2/3/5 J), dual AC/DC input, LED display with fault alarm, IP65 enclosure, output published to IEC 60335-2-76. Where it stops: a younger brand with a deliberately compact catalogue and a 5 J ceiling.
Zareba
Strengths: stocked across major farm and hardware retail (same-day replacement across much of the US), unusually honest weed-derated mileage figures, lightning cover and surge accessory on some models. Where it stops: specs presented in miles first make cross-brand comparison harder; warranty tiered by mile rating; line built around homestead rather than intensive commercial grazing.
LIFEALL
Strengths: high-output options (up to a 9J mains/battery charger) and a 20-mile solar unit at a fraction of the premium-brand price; honest range ratings; direct support from the manufacturer; selection spans poultry-scale portables through ranch-scale energizers. Where it stops: a smaller brand than Gallagher or Parmak, no nationwide farm-store shelf presence (buy online), and the catalogue is focused rather than encyclopaedic. See the full range on the LIFEALL shop.
Why "Miles of Fence" Claims Mislead — and What Weeds Really Cost
Almost every brand advertises a mile figure, and those numbers assume a single clean wire in perfect conditions. Zareba is unusually transparent: its 25-mile AC charger energizes up to 25 miles weed-free, up to 12 miles in light weeds, and up to 6 miles in heavy weeds. The practical lesson applies to every brand: a fence that meets spec in March may run at a quarter of its rated capacity by July. That is the case for buying headroom — and the reason adjustable-output units are useful, since you raise output as the season loads the line instead of replacing the energizer.
AC, DC or Solar: Which Power Source Suits Your Site?
Power type
Best where
Watch out for
110V AC mains
A socket is within reach; permanent perimeters; heavy vegetation
Weather protection for the unit and a surge path for lightning
12V DC battery
Remote paddocks, strip grazing, no power on site
Battery management becomes a weekly chore without solar top-up

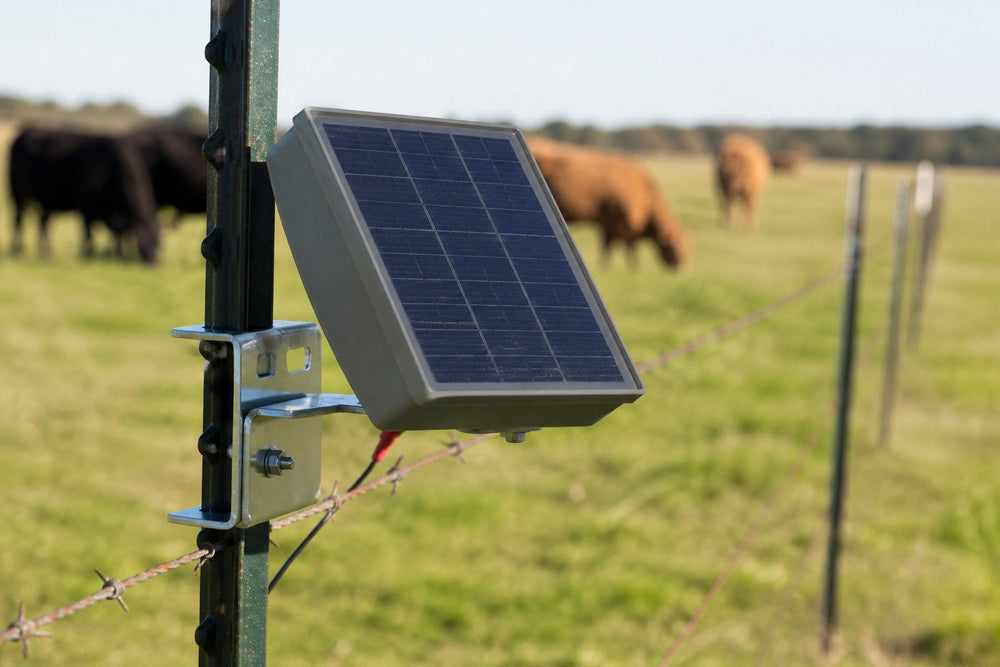

Solar
Off-grid, rotational and temporary fencing that moves with the stock
Panel size caps output; low-light seasons need reserve battery capacity
Multi-power (AC + DC)
Layouts that will change — start on mains, move to battery when the fence moves
Slightly higher purchase price than a single-input unit of the same output
Pre-Purchase Checklist
Measure the wire, not the acres. Total the energized wire including every strand and cross-fence, then apply ~1 output joule per mile as a floor.
Double it. Add headroom for weed growth, poly conductors and next spring's paddock.
Plan the grounding first. Under-grounded fences under-perform regardless of brand — ground rods are cheaper than a bigger energizer.
Check the enclosure rating. Look for a stated IP figure rather than "weather resistant".
Read the warranty for lightning. Cover varies enormously between brands, and lightning is the most common failure cause.
FAQ
Do all brands measure joules the same way?
Not quite. Manufacturers may quote stored joules, output joules, or both — and stored is always the larger figure. When comparing two brands, compare output to output. Units tested to IEC 60335-2-76 state which measurement they report.
Can I mix brands — one energizer with another brand's netting or polywire?
Yes. Energizers, conductors and netting are electrically compatible across brands; there is no proprietary connection. What matters is matching output to the conductor — netting and polywire have higher resistance than steel wire, so they need more joules for the same length.
How many ground rods do I need?
The manual specifies one to three steel ground rods for every model, each driven at least 1.5 m (5 ft) into moist soil. Dry, sandy or frozen soil needs more ground rod length. If your fence tests low and the energizer tests fine, grounding is the usual culprit — see our complete grounding guide.
Is a higher joule rating always better?
Higher output gives useful headroom, but an oversized unit costs more, draws more from a battery or panel, and needs more grounding to deliver its rating. Size for your fence plus a margin, and prefer adjustable output if your requirements change through the season.
What actually kills fence energizers?
Lightning surge is the most common cause across every brand, followed by water ingress in unsealed enclosures, and battery failure in solar and DC models. A lightning diverter, an IP-rated housing and a clear fence line extend service life more than brand choice does.
Final Word
Every brand on this list can build a fence that holds. The differences that matter are joules, power source, weather rating, warranty and how easy it is to get support where you farm. If you are on a small-to-mid operation and want high output or off-grid solar without the premium badge, browse the LIFEALL energizer range — and if you are still unsure about sizing, our guide on how many joules you need covers the math in plain English.
Read article
buying guide

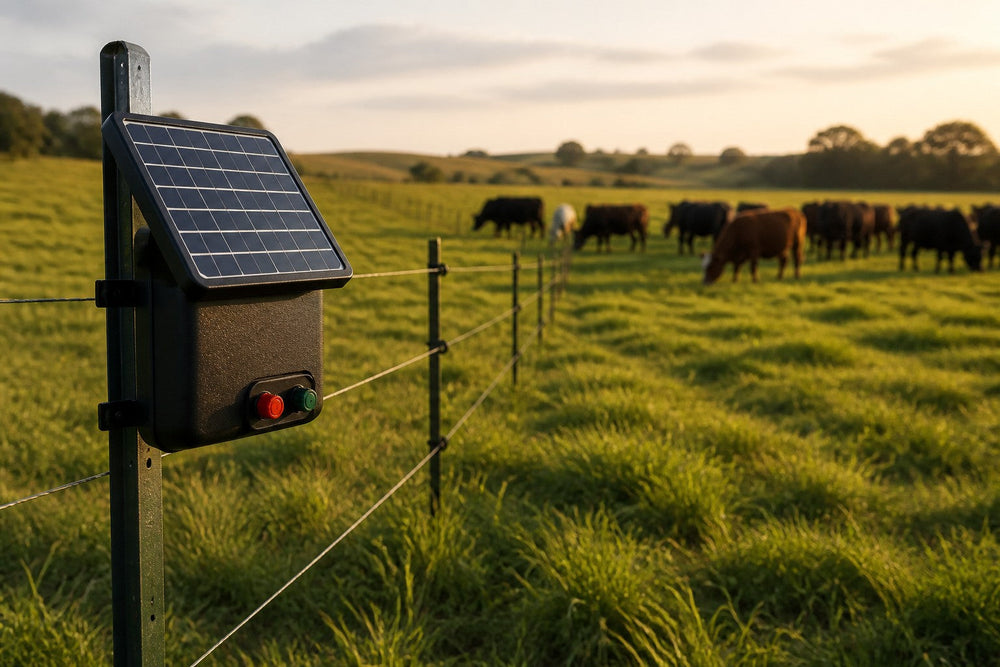

10 Best Portable Electric Fence Energizers for Cattle (2026): Reviews & Buying Guide
Quick Answer: Which Portable Energizer Is Best for Cattle in 2026?
For rotational grazing on clean fence, a 1-joule solar unit such as the Gallagher S100 is the grab-and-go benchmark. For value, a dual-power charger with selectable output (2/3/5 joules, AC or 12V DC) delivers the most flexibility per dollar — the same box can power a spring calving paddock, a summer strip and a weedy fall run without buying a second unit. As a rule of thumb, cattle need at least 1 stored joule on clean fence, and 2–3 joules once weeds, bulls or multi-strand runs enter the picture.
Why "Portable" No Longer Means "Weak"
Portable energizers used to be small solar boxes with a fraction of a joule — fine for calves for one summer, useless by November. That has changed. A modern 12V battery unit can push cattle-level joules down a mile of polywire, and the best solar packs keep a fence hot for two to three weeks of cloud cover.
Spec sheets still read like alphabet soup: stored joules, output joules, kilovolts, miles of fence, low impedance. Below we break down what each number means, then walk through ten portable units that make sense for cows, bulls and rotational grazing — including our own LIFEALL chargers, which we sell and can vouch for honestly.
Top 3 Picks (August 2026)
Rank
Unit
Why
Editor's Choice
Gallagher S100 Solar
1.0 J stored, 9-mile/30-acre range, runs ~3 weeks without sun, 3-year warranty. The rotational-grazing standard.
Best Value
Dual-power 2J/3J/5J charger (selectable output, AC/12V DC)
Adjustable output to 5 J, 8/10/12 kV, LED voltage display and fault alarm, IP65 shell — features that used to cost $300+.
Most Powerful Solar
Parmak Magnum Solar-Pak 12
3.1 J output, 30-mile solar rating, standard 12V battery. Proven for bulls on remote pasture.
The 10 Portable Energizers Compared
Unit
Output
Range
Power
Best For
Gallagher S100 Solar
1.0 J stored
9 mi / 30 ac
All-in-one solar
Daily paddock moves, clean wire, under 30 ac
Dual-power 2/3/5 J
2/3/5 J selectable
6.2 mi
AC or 12V DC
Growing herds, mixed livestock, adjustable needs
Parmak Magnum Solar-Pak 12
3.1 J output
30 mi solar
Solar + 12V battery
Bulls, remote pasture, heavy weeds
Speedrite 3000 Unigizer
3.0 J stored
30 mi / 120 ac
AC or 12V DC
Established ops wanting a big-name warranty
Patriot P20
2.0 J stored
20 mi / 80 ac
AC or 12V DC
Mid-size herds, sealed case, value line
Premier 1 IntelliShock 120
1.2 J output
2.5 mi (3-strand cattle)
Solar, twin 12V batteries
Mixed cattle with sheep/goats/poultry, northern reserve
Cyclops Champion 2 J
2.0 J
Conservative ratings
Solar or 12V
Storm-prone regions, fuse-protected repairs
Stafix X1 Unigizer
1.0 J
10 mi / 40 ac
AC or 12V DC
Small clean paddocks, simplest dual power
Zareba 10-Mile Solar (ESP10M-Z)
0.15 J output
10 mi solar
Solar, T-post mount
Weaning pens, short strips, hot wire inside barbed fence
LIFEALL 20-Mile Solar
High-output solar
20 mi rated
All-in-one solar
Off-grid farms, perimeter + paddock use, longer seasonal runs
How to Choose: The Three Numbers That Actually Matter
1. Joules — the Punch
Joules measure the energy stored in the capacitor before each pulse. For cattle: 1 J on clean fence is the floor, 2–3 J for bulls or weeds, 3 J+ for large multi-strand runs. Output joules are always lower than stored joules (usually 20–35%), and some brands quote one figure and some the other — compare output to output.
2. Voltage — the Pressure
Voltage pushes the pulse through hair and hide. 5 kV at the far end is the practical minimum for cattle; units peaking at 10–12 kV keep a margin when wet grass leans on the wire.
3. Miles — the Marketing Number
The miles rating assumes a single clean wire in perfect conditions. In reality, with three strands and weeds, expect about a third of it. Zareba publishes derated figures: its 25-mile AC charger does 12 miles in light weeds and 6 in heavy weeds — a lesson that applies to every brand.
Sizing by Herd and Fence
5-10KM Electric Fence Energizer, 2.5 Joule, LCD Display (12V)
$59.99
Shop Now
20-Mile Solar Electric Fence Charger, 0.5J Energizer
$139.99
Shop Now
Herd / fence
Minimum stored joules
Calves or a few cows, under 1 mile, clean
0.5–1 J
10–30 head, 1–3 wire miles, some weeds
1–2 J
Bulls, 30–80 head, weedy multi-strand
2–3 J
Large remote pasture, heavy vegetation
3 J and up
Why Adjustable Output and Monitoring Matter on a Portable
A fixed energizer is bought for one job; a portable one gets dragged into several. The same fence can need 1 J in June and 3 J in September. That is the case for a switchable unit, and it is why selectable-output chargers rank so high on value. Monitoring is the second separator: reading a voltage display from the truck beats walking the fence with a tester. A fault alarm that triggers on a broken line or dead short catches the failure before the herd does.
Grounding Still Decides Everything
Poor grounding is the number-one reason a new charger reads low — ahead of weeds and faulty units. Use one to three galvanized ground rods, each driven at least 1.5 m (5 ft) into soil that stays damp. Dry or sandy soil needs more rod. Measure at the far end of the line, not at the energizer; anything above 4–5 kV at the far end holds cattle. See our complete guide on how to ground an electric fence properly in the Guides section.
Frequently Asked Questions
How many joules do I need for bulls?
Plan on 2–3 stored joules with any weed contact, and 3+ on long multi-strand runs. Bulls test fences harder and carry thicker hide on the poll and neck.
Will a portable energizer work with electric netting?
Yes, but netting loads an energizer far more than polywire — a unit that powers 3 miles of polywire may only handle 4–6 rolls of netting. A 2 J or higher setting is safer for netting around cattle.
Does a higher voltage setting hurt cattle?
No. Energizers deliver a very short pulse; the joule figure controls energy delivered, not kilovolts alone. Higher voltage mainly helps the pulse cross thick winter coats and wet vegetation.
How do cold winters affect solar or battery units?
Lead-acid capacity falls roughly 20–40% below freezing and short days reduce solar recharge. Insulate the battery box, tilt the panel steeper for the low sun, and consider dual-power units you can simply plug into AC at the barn for winter.
How long should a portable energizer last?
The electronics in a decent unit run 7–10 years. Sealed internal batteries are the usual first failure at 2–4 years, which is why models with a user-replaceable 12V battery cost less to own long term. Lightning is the other killer — an external surge arrestor is cheap insurance.
Final Verdict
Match joules to wire miles, weed load and the animals, then size up by 20–30%. A charger running at 60% of its ceiling lasts longer and holds the fence through the one wet week when everything leans on the wire. If you are starting out or expanding, a dual-power unit with adjustable output avoids buying a second energizer next season — and if you want an off-grid solar option with honest range, take a look at the LIFEALL 20-Mile Solar charger in our shop.
Read article
buying guide
Every Electric Fencing Term, Explained
Electric fencing has a vocabulary of its own, and most of it shows up on spec sheets and installation guides without explanation. This glossary covers the terms you'll actually meet when planning, buying or troubleshooting a fence. Bookmark it — it's the reference we link to from our other guides.
The Power Terms
Energizer / Fencer / Fence Charger / Fence Controller — the electrical device that produces energy and delivers it to the fence to control animals. "Energizer" and "charger" mean the same thing.
Joule — the unit of energy used to rate low-impedance energizers. 1 joule = 1 watt of power for 1 second. Think of it as the punch behind each pulse.
Voltage — electrical pressure. Voltage pushes current down the fence wire; the higher the voltage, the more current it can push through hair and hide.
Amperage — the measurement of electric current. Amperage is what you actually feel when shocked; higher amperage means a more intense shock.
Watt — measure of electrical power. Voltage × Amperage = Watts; Watts × Time = Joules.
Ohms — measure of resistance to current flow. A high ohms reading means a light fence load; a low ohms reading means a heavy load (weeds, long runs, wet conditions).
Alternating current (AC) — electricity from 110V/220V outlets; it cannot be stored. Energizers that deliver AC to the fence are called continuous-current chargers.
Direct current (DC) — electricity produced by batteries, which can be stored in a capacitor. Most energizers produce DC.
Capacitive discharge — how most energizers work: they store DC in an output capacitor before discharging it to the fence.
Low-impedance — an energizer type that increases its output energy as the fence load increases, delivering high-amperage shocks in very short pulses. The standard for modern livestock fencing.
Solid-state — solid-state chargers deliver medium-amperage shocks in medium pulses; best for shorthaired livestock, small animals and pets in light weed conditions.
Battery charger — an energizer powered by a 6V or 12V battery, for remote areas without a 110V outlet; often paired with a solar panel to recharge.
The Fence Line Terms
High tensile — an affordable, long-lasting electrified fence system, an excellent choice for permanent perimeters. Requires braced wood corner/end posts plus special insulators, hardware and tools that maintain constant high tension on the metal wire.
Insulator — keeps the electrified wire from touching posts or anything else that would drain current. Usually plastic or porcelain — see our insulator guide for the ceramic vs porcelain choice.
Ground rod — the metal stake driven into soil that completes the circuit; it picks up electricity moving through the earth back to the charger.
Ground rod clamp — connects the ground wire from the charger to the ground rod.
Ground system — the electrical path back to the charger, usually earth-ground rods in the soil. A weak ground system is the number-one cause of weak fences — see our grounding guide.
Hook-up wire — insulated wire rated 20,000 volts or more, used to make fence connections without voltage loss.
Line posts — posts that support the fence line; they carry far less tension than corner posts and can be metal, wood, plastic or fiberglass.
Corner posts — heavily braced posts that absorb the pull of a taut fence line; usually wood, set deep.
Splicer — joins separate strands of wire without breaking the electrical circuit.
Tensioner — tightens fence wires (typically polytape) to increase tension on a section of line.
The Fence System Terms
Permanent fence — a multi-strand, well-braced fence, traditionally barbed or woven wire, now usually electrified high-tensile.
Portable / temporary fence — an electric fence that is easily moved — the backbone of rotational grazing.
Rotational grazing — allowing livestock to graze in small paddocks divided by temporary fences, moving them frequently so vegetation regrows. Usually one strand at 40 inches or at the animal's nose level.
Controlled grazing — the broader practice of managing forage with grazing animals, usually by subdividing pasture with electric fencing and moving livestock frequently.
Putting It Together
If you're planning a fence, start from the animal and the job, then size the energizer in joules, plan the ground system, and choose insulators and wire to match. All the pieces are covered step by step in our Guides section — from how many volts you need to winterizing your fence.
Read article
buying guide
Horse Fencing Cost: Electric vs Wood vs Vinyl (2026 Price Guide)
Horse Fencing Is an Investment — Get It Right the First Time
Horse fencing is one of the larger one-time investments on a property, and the safety of your horses depends on getting it right. The options below run from least to most expensive based on installed materials. If you are not installing the fence yourself, add labor on top of these figures.
All Horse Fencing Options by Cost
Fence type
Installed cost / ft
Lifespan
How it works
High-tensile electric wire
$1.93
10–15 yrs
Psychological deterrent
Coated high-tensile wire
$1.94
15–20 yrs
Psychological deterrent
Electric tape / ribbon (1-1/2" equitape)
$2.02
3–5 yrs
Psychological deterrent
No-climb horse fence
$3–5
10–15 yrs
Physical barrier
Wood (3- or 4-rail)
$5–10
10–15 yrs
Physical barrier
Vinyl / PVC
$7–12
10–15 yrs
Physical barrier
Metal pipe
$10–15
20–30 yrs
Physical barrier
Electric Wire — Least Expensive, with One Caveat
High-tensile electric wire is the cheapest option at about $1.93–$1.94 per installed foot, and coated high-tensile extends the lifespan to 15–20 years. The caveat: conventional high-tensile wire alone is not recommended for horses. An excited or spooked horse can break through and suffer cutting or puncture wounds. Electric wire fences for horses work best as a psychological deterrent combined with visibility aids — tape, flags or an electrified tape line — rather than as a bare-wire barrier.
Electric Tape — Mid-Cost and Visible
Electric tape fencing (about $2.02 per foot for 1-1/2" equitape) sits in the middle of the range and is highly visible to horses — the key safety advantage. But it is a psychological deterrent only: the small conducting wires take much of the strain, so tape can break under windy conditions and with sun and temperature cycling. Plan on replacing it every 3–5 years.
No-Climb and Wood — Physical Barriers
No-climb horse fence ($3–5/ft) is a medium-expense physical barrier, but it needs routine tightening, is not highly visible, and collisions can still cause cutting injuries. Wood 3- or 4-rail fencing ($5–10/ft) is attractive and sturdy but boards can splinter, some horses crib (chew) the rails, and wood shrinks, warps and cracks — the long-term maintenance cost is real.
Vinyl and Pipe — The Premium End
Vinyl/PVC ($7–12/ft) gives the traditional wood look with little to no maintenance, but it is a physical boundary only: horses can lean on it and damage it, and can be injured trying to get through or over. Metal pipe ($10–15/ft) is the longest-lasting option at 20–30 years, but it is unforgiving when a spooked horse runs into it.
What We Recommend for Most Horse Owners
For the best combination of safety, visibility and cost, most horse owners land on an electrified high-visibility system: tape or braid on the top line so the horse sees the boundary, backed by a properly sized energizer and good grounding. It costs a fraction of wood or vinyl, keeps the horse safe from cutting injuries, and — once trained — horses respect it completely. For the training steps, see our guide to introducing horses to electric fencing; for the rest of the system, browse the LIFEALL shop for energizers and conductors.
Read article
electric fence
Fence Post 101: How to Choose & Install the Right Posts
Posts Are the Backbone
Your fence posts support everything else. They need to be made of a durable material and installed properly — a weak post turns a good fence into a seasonal repair project. Before you choose, answer three questions: will the fence be permanent or temporary? What is the general layout (corners, gates, terrain)? What animals will it hold?
The Three Post Jobs
Corner posts — usually wood, set deeper than in-line posts to withstand the strain of a taut fence line. A good rule: sink them about as deep as their above-ground height.
In-line posts — spaced between corner posts to support the wire and stop sagging. They don't need to go as deep as corners but should be firmly set.
Temporary / portable posts — smaller and lighter, used to section a pasture for rotational grazing. Most push into the soil by hand with a step-in flange.
Fence Post Types
Post type
Best used for
Notes
Wood
Corner and permanent lines
Use at least 8 ft for corners; set 24–48 in deep (more in sandy or rocky soil)
Steel rebar / fiberglass rod
Temporary and portable fencing
Fiberglass is flexible but needs gloves; both work as in-line spacers
T-post
Permanent or semi-permanent in-line
Drive with a post pounder; pairs with clips and brackets
Step-in post
Rotational grazing, temporary lines
Lightweight, no clips or insulators needed
Pigtail post
Cross-fencing, managed intensive grazing
Top loop holds the line; no clips or insulators
Recommended Post Spacing
Fencing type
Spacing (feet)
Woven wire
14–16
Barbed wire
12–14
Electric
12–20
High-tensile, level terrain
30–90
High-tensile, difficult animals / rolling terrain
15–20
Polytape and polywire
12
Board
8
Corrals
6 or less
Choosing Wood Posts That Last
Wood decays over time — untreated wood typically fails in just a few years. Look for pressure-treated wood (CCA or equivalent), and check the retention rating: 0.4 lb/ft³ or higher indicates enough treatment to last decades. Anything lower will break apart fairly quickly.
Wood type
Untreated (years)
Treated (years)
Pine (most common)
3–7
25–30
Cedar
15–20
20–25
Redwood
10–15
20–30
Black Locust
20–25
Treatment not necessary
Osage Orange
20–25
Treatment not necessary
Oak (white)
10
15–20
Sweetgum
3–6
20–30
Douglas Fir
3–7
15–18
Two species — Black Locust and Osage Orange — resist decay so well they don't need treatment at all and can last up to 25 years. Avoid "landscape timbers", which are often unlabeled and not built to carry fence tension.
Metal Posts: Know the Trade-Off
Metal posts are fine for ornamental or chain-link fencing, but for livestock lines they are usually inferior to wood — especially as corner posts. Metal doesn't flex: once bent, it stays bent. Animals testing the fence will eventually push a metal post past its limit and you'll have to replace it. Wood flexes and returns to shape, which is exactly what a fence under pressure needs. For corners, sink the post about as deep as its above-ground height; in-line posts can go shallower.
Putting It Together
Match the post to the job: wood corners and T-posts for permanent lines, step-in and pigtail posts for rotational grazing. Spacing follows the fence type in the table above — more posts than needed wastes money, too few lets the line sag and short out. For the full install sequence, work through our installation guides.
Read article
electric fence
Can Electric Fencing Cut Your Farm Labor Costs? The Numbers, Compared
Direct Answer
Yes — electric fencing systems can reduce fencing-related labor by roughly 40–70% compared to traditional barbed wire or wooden post fencing, and farms report annual savings of $5,000–$25,000+ depending on operation size, herd type and labor rates. Combined with rotational grazing, the ROI can exceed 300% within three years.
The Real Cost of Farm Labor
Farm labor costs have been rising faster than commodity prices. USDA NASS data shows total US hired farm labor expenditures exceeded $35.4 billion in 2022 — a 38% increase over the previous decade — while average farm worker wages climbed to roughly $17.90–$21.50 per hour across major agricultural states (BLS, 2023).
What surprises many operators is how much of that labor is tied to fencing: not just installation, but the constant grind of maintenance, repair, livestock movement and daily monitoring that adds up invisibly over a season.
Traditional barbed wire: 20–40 hours per mile to install, and 40–80 hours per mile annually to maintain (Penn State Extension).
A farmer paying $19/hour for fence work across just 3 miles of fencing can easily spend $14,000–$18,000 per year in fencing-related labor alone.
A 2022 American Farm Bureau survey found 62% of livestock farmers listed fencing maintenance and livestock management among their top three labor cost drivers — yet fewer than 30% had assessed whether electric fencing could change that equation.
Why Electric Fencing Needs Less Labor
An electric fence works through psychology, not physics. Livestock learn the boundary after just 1–3 contacts and actively avoid it thereafter — unlike a physical barrier that animals constantly test and occasionally breach. That behavioral conditioning produces five labor savings:
Faster installation — lightweight posts and single-strand wire vs multiple strands of barbed wire on heavy wooden posts.
Far fewer repairs — animals don't physically push through the fence.
Easy reconfiguration — one person can move a temporary fence for rotational grazing, no tools.
Less patrol time — an energizer with a voltage display or fault alarm flags a problem instead of making you walk the line.
Solar options — eliminate grid infrastructure work in remote paddocks.
Traditional vs Electric: Full Cost Comparison
Cost factor
Traditional barbed wire
Electric permanent wire
Electric netting (portable)
Initial cost per mile (materials)
$2,000–$4,500
$800–$1,800
$300–$900
Installation labor (hrs/mile)
20–40 hrs
6–10 hrs
2–4 hrs
Annual maintenance labor (hrs/mile)
40–80 hrs
8–15 hrs
3–6 hrs
Typical lifespan
15–25 years
20–30 years
Indefinite (portable)
Rotational grazing flexibility
None — fixed boundary
Limited reconfiguration
Excellent — reposition in under an hour
Animal injury risk
High (lacerations)
Very low
Very low
Annual Labor Hours: A 5-Mile Operation Compared
Task
Traditional wire
Electric system
Installation (one-time)
150 hrs
35 hrs
Annual repairs & maintenance
280 hrs/yr
60 hrs/yr
Livestock movement & rotation
240 hrs/yr
40 hrs/yr
Fence monitoring & patrol
120 hrs/yr
40 hrs/yr
Representative figures based on University of Kentucky Cooperative Extension and Penn State Extension benchmarks. Your operation will differ — but the ratio is consistent.
How to Calculate Your Own ROI
The calculation follows a clear pattern:
(Current annual fencing labor hours − projected electric fence labor hours) × hourly labor rate = annual labor saving
Annual labor saving ÷ total system cost = years to break even
Worked example: A farm with 3 miles of fencing currently spends 300 labor hours/year on fencing at $18/hr = $5,400/year. After switching to electric, it spends about 85 hours = $1,530/year. System cost: $4,800. Year-one net saving: $3,870 after purchase. From year two on: $3,870/year in pure savings. Over 20 years that exceeds $77,400 from a $4,800 one-time investment.
Typical break-even for most operations: 12–18 months.
Beyond Labor: What Else You Get
Better pasture health — rotational grazing via portable netting can increase carrying capacity by up to 40% (University of Missouri Extension).
Predator exclusion — properly designed electric netting reduces livestock predation by foxes, coyotes and dogs by 87–94% (University of Minnesota Extension), ending costly stock losses and the labor of responding to them.
Animal welfare — no barbed-wire injuries, one of the leading causes of livestock laceration and infection. The shock is momentary and carries no lasting physiological harm.
Frequently Asked Questions
Is electric fencing safe for livestock and farm workers?
Yes. The pulse is high in voltage but extremely low in energy — a typical farm energizer outputs 2,000–10,000 volts at well under a joule of stored energy, creating a sharp, unpleasant shock that startles but causes no lasting harm. Reputable energizers comply with the IEC 60335-2-76 international safety standard for fence energizers.
How do I choose the right energizer for my operation?
Size by two numbers: output joules and rated coverage. Roughly 0.5–1 joule for up to a mile with minimal vegetation; 1–3 joules for 1–5 miles; 5+ joules for long, complex or vegetation-heavy lines. When in doubt, size up — a higher-output energizer running a smaller fence holds better voltage under weed load and gives you room to expand. See our energizer sizing guide for the details.
Are solar energizers reliable enough for year-round use?
Yes, when specified for your region. Modern solar units pair high-efficiency panels with battery banks rated for 7–21 days of reserve — genuinely reliable in most temperate climates. In northern winters, pick a unit with at least a 14-day reserve and a panel sized for your latitude, and clear snow off the panel.
What USDA programs help offset the cost?
USDA EQIP covers electric fencing for prescribed grazing management plans at cost-share rates of 50–75% in many states, and RCPP covers operations in specific priority areas. Contact your local NRCS office for current rates — and sign the contract before you build.
How do I stop weeds from grounding out my fence?
Vegetation contact is the most common cause of voltage loss. Mow or trim the fence line 1–2 times per season, use a higher-output energizer that sustains voltage under load, and check with a fence tester to pinpoint high-drain sections in 15–20 minutes instead of guessing for hours.
The Bottom Line
Fencing labor is one of the few farm costs you can cut in half with a single system change. If you are ready to price a system for your operation, start with an energizer sized to your fence — and pair it with our guides on rotational grazing setup to capture the pasture and labor benefits together.
Read article
alpacas
Fence Height Is the Whole Game
For llamas and alpacas, fence height is essential: tall enough to keep them in, and configured to keep predators out. These are sociable herd animals with thick fur coats — the coat makes them harder to shock, so voltage matters more than with short-haired stock, but they're intelligent and learn to respect a hot fence quickly.
Ask These Questions First
Will you keep males and females together? If so, plan to separate them — a single group will need interior division.
Are there young crias in the pen? Babies can get caught in the fence while small, and they are far more vulnerable to predators, so they need extra wires and closer spacing.
What predators are you fencing against? Adult llamas and alpacas can kick in defense, but wolves, coyotes and stray dogs will still test the fence — and crias are in real danger from them.
The Specification
Height: to the shoulder — about 5 feet — so they can't jump over. Electrified high-tensile fencing is the recommended material for safety and durability.
Strand count: 4 wires for mature llamas and alpacas, 6 wires where crias are present or predator pressure is high.
Spacing: even intervals up the height, with the bottom wire low enough to deter digging predators.
Voltage: the energizer should maintain 4,000–5,000 volts on the line — 4,000+ handles their thick coats, and 5,000 volts is the minimum to deter predators. Vegetation drags voltage down, so size with headroom.
Putting It Together
Because their coats insulate, llamas and alpacas demand a stronger shock than cattle — size the energizer accordingly and keep the line clear of vegetation. For the full setup — grounding, energizer hookup and testing — see our installation guides, and pair the fence with our predator fencing guide if coyotes or dogs are a factor on your land.
Read article
accessories
Your T-Posts Can Do More Than Hold Wire
T-posts are strong, sturdy and last for years — which makes them ideal fence posts and, it turns out, ideal mounting points for everything else on the farm. A T-post bracket slides over the top of the post and locks into place, offering pre-drilled mounting holes in a horizontal or vertical orientation. Once it's on, almost anything with a bolt hole can live on your fence line.
The 16 Uses
Electric and solar fence chargers — the classic use: hang your energizer right on the fence it powers.
Bird feeders — hang one from a horizontal bracket or mount it directly with a vertical bracket.
Bird houses and boxes — more birds on the fence line means free pest control.
Mailboxes — a steel T-post outlasts a 4×4 wood post that disintegrates in a few years.
Newspaper tubes — protect home-delivered papers from the weather.
Game cameras — no trees needed; put a trail cam anywhere in the field or near a pond.
Security cameras — inconspicuous site surveillance anywhere you need it.
Rain gauges and weather equipment — thermometers, wind gauges and rain gauges all mount cleanly.
Outdoor shelving — clip horizontal brackets to two neighboring posts and run a board between them.
Lighting — temporary or permanent work lights on the post.
Solar panels — open, treeless fence lines are perfect for small solar panels to power tools or remote lights.
Signs and reflectors — "livestock crossing" signs or reflectors to guide traffic.
Salt licks — mount livestock supplements to the post.
Cable slings — run cable or keep an extension cord handy by clipping it to a bracket.
Hose holders — wrap the hose on the tab and strap it down.
Hanging hooks and chains — leave a hook or chain mounted for whatever comes next.
Choosing a Bracket
Two orientations cover almost every job: a horizontal bracket slides down the post and offers a mounting tab running perpendicular to it, and a vertical bracket offers a tab parallel to the post. Both lock into place with a simple levering action. Solid steel with pre-drilled holes means whatever you mount is as sturdy as the post itself.
Beyond the Bracket
Brackets are just one way to get more from your fence line. For the rest of the system — energizers, insulators, wire and grounding — our Guides section covers the full setup, and the LIFEALL shop stocks the hardware to build it.
Read article
ceramic
