A605 12V Electric Fence Energizer – 2J Output with LCD

Reliable 12V fence power with at-a-glance monitoring

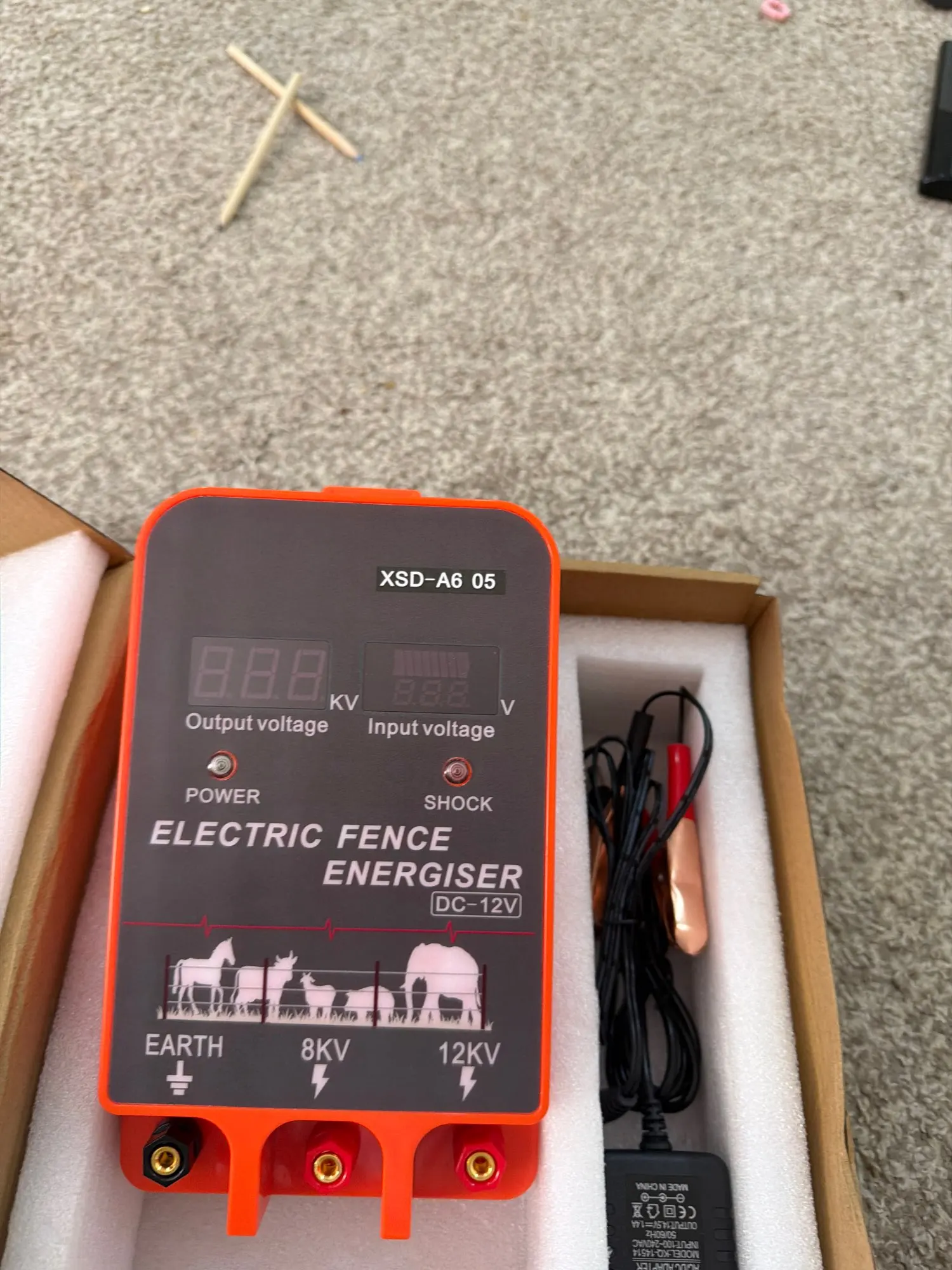

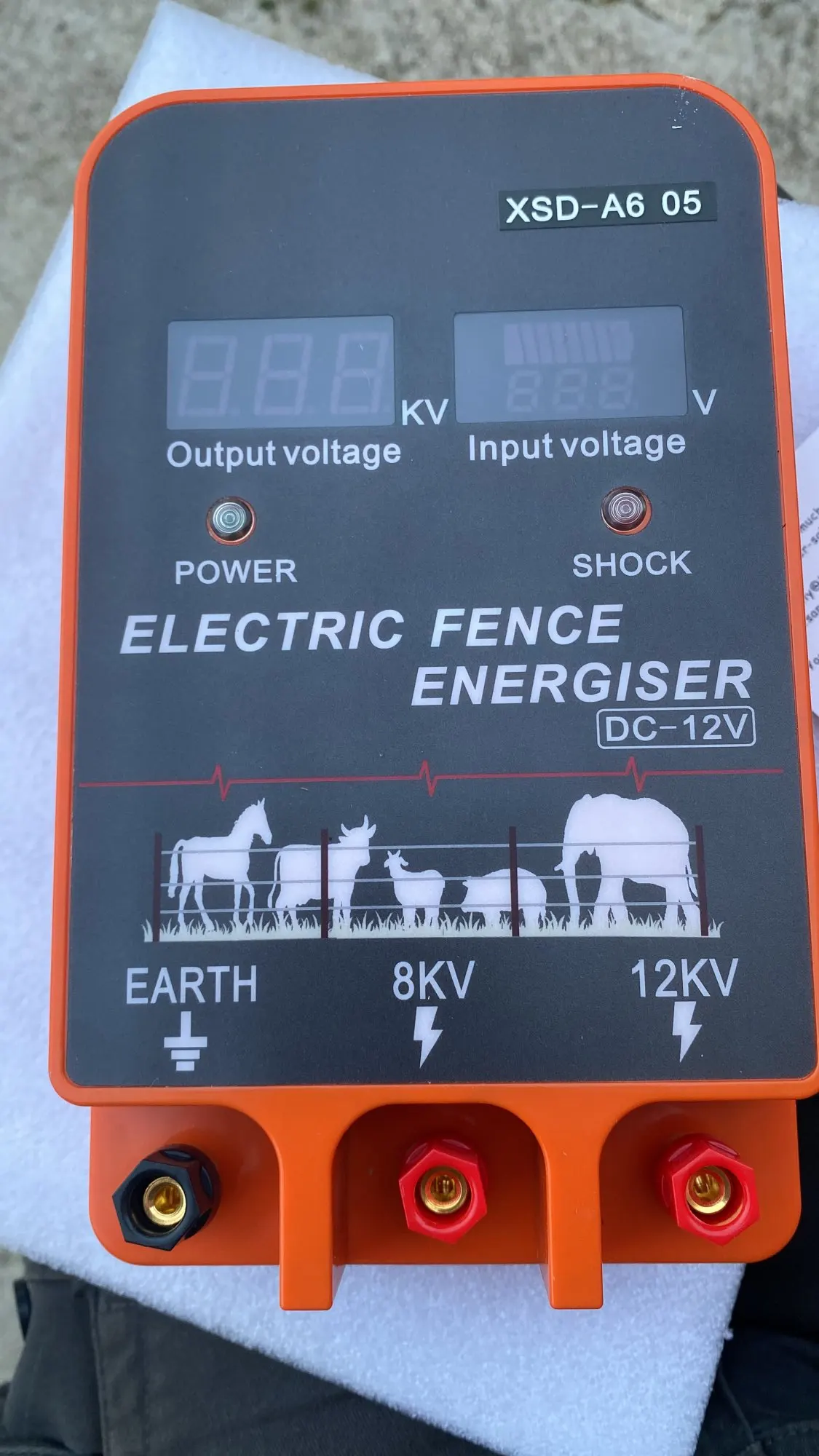

The LIFEALL A605 is a 12V DC electric fence energizer (fence charger) designed for livestock enclosures and farm perimeter fencing. Its LCD shows input voltage and battery level, helping you check the power source without opening the enclosure or using a separate meter.

The unit stores up to 2.5 joules and delivers up to 2 joules of output energy. It is suitable for cattle, horses, goats, pigs and similar livestock when installed with a correctly designed fence and grounding system.

Flexible power setup

The energizer operates on 12V DC and ships with a mains power adapter in your chosen plug type, so you can plug it into a standard wall outlet. It can also run from a suitable 12V battery, or from a correctly specified solar-and-battery system where mains power is not available at the fence line.

Specifications

Actual fence performance depends on wire type, vegetation, insulation, grounding, layout and weather. The published distance is a guide for a correctly installed fence, not a guarantee for every site.

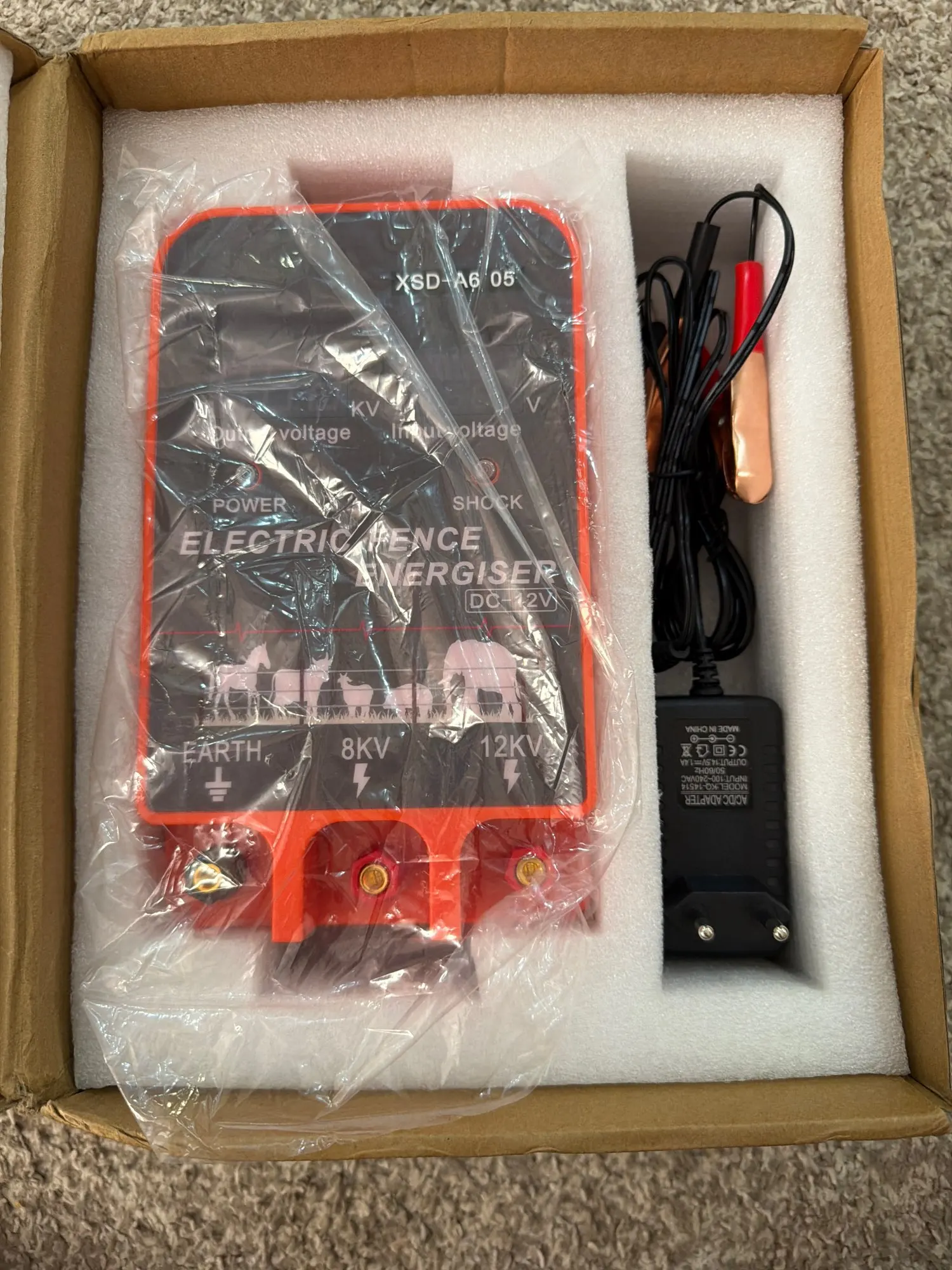

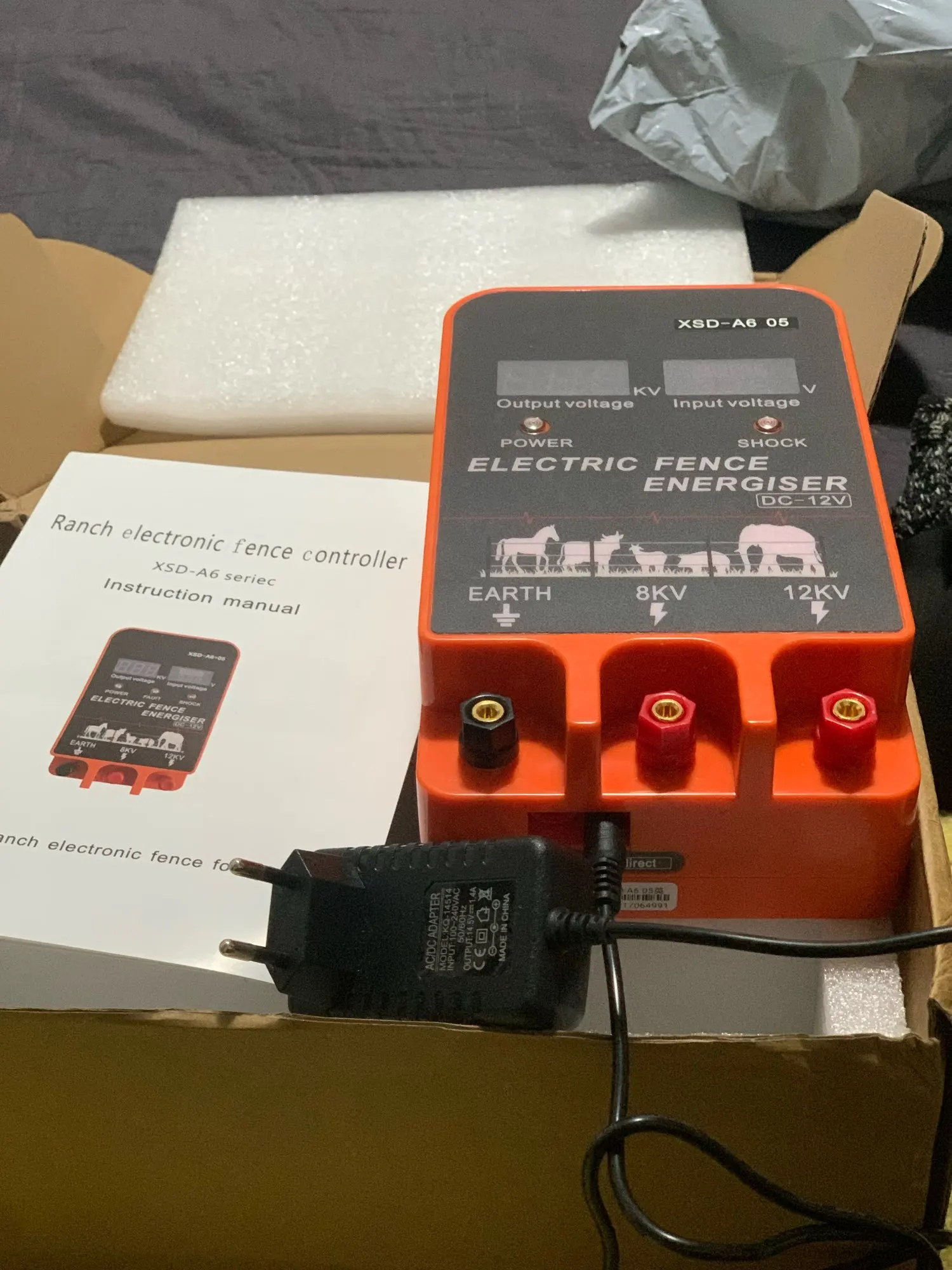

What's in the box

• 1 × A605 electric fence energizer
• 1 × power adapter with selected plug type
• 1 × battery lead/holder set

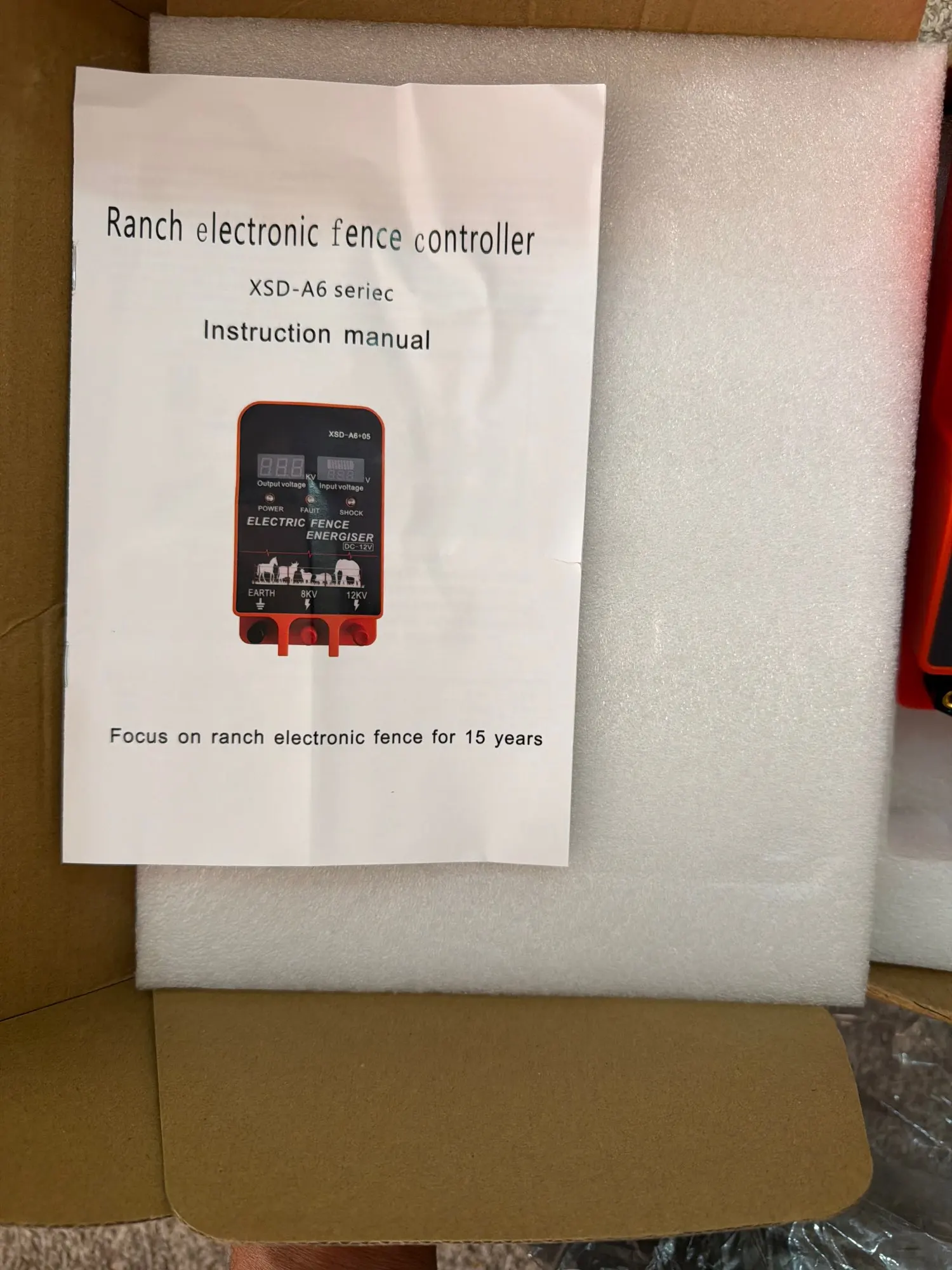

• 1 × user manual

Installation note

Use a dedicated grounding system and follow the supplied manual. The included manual specifies a grounding depth of at least 1.5 m. Have the installation checked by a qualified person if local electrical or agricultural-fencing rules require it.

FAQ

Is the A605 an AC or DC energizer?

The energizer itself uses 12V DC input. It ships with a mains power adapter that converts household AC power to the required 12V DC supply, and it can also run from a 12V battery or a correctly sized solar-and-battery setup.

How much fence can it power?

The recommended loaded distance is up to 10 km under suitable conditions; the 5–10 km in the model name refers to the typical working range for standard installations. Fence length alone does not determine performance — vegetation, grounding, wire resistance, insulation and layout all matter.

Can it be used with a battery or solar panel?

Yes. It runs from a suitable 12V battery. A solar setup also needs a correctly sized solar panel, charge controller and battery; confirm compatibility before connection.

Which plug should I choose?

Choose EU, US, UK or AU according to the wall outlets used at the delivery location. The plug selection applies to the included power adapter.
